Freezer-proof
Sealed against frost and condensation down to −40 °C, with no ingress to the electronics.
view_in_ar 3D
Loading 3D…
drag_pan Drag to rotate · scroll to zoomReplacement sensor case
CW-CASE
Rugged IP66 enclosure

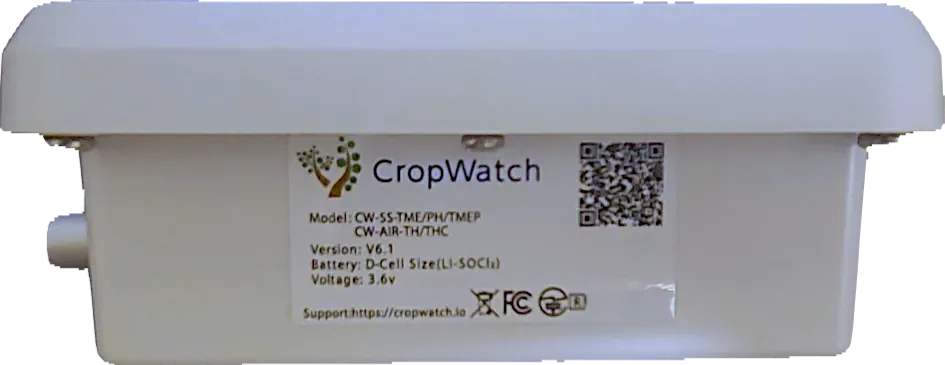

The housing every CropWatch sensor lives in - sealed against freezer frost, barn washdown, field sun and dust. When you need a fresh enclosure, the same pre-calibrated module drops straight in.
water_drop IP66 wb_sunny UV-stable cleaning_services Washdown cached Tool-free
Built for the worst spots
One enclosure, every environment.
Washdown-ready
IP66 against barn hose-downs and humid greenhouse air, year after year.
UV-stable outdoors
Holds up to full field sun without becoming brittle or discoloured.
Modular by design
Replace the shell, keep the calibration.
If a case is cracked, painted over, or just retired from a harsh spot, you don't lose your calibrated sensor. Move the pre-certified module into a fresh enclosure and carry on.
- check Same socket across the CropWatch range
- check Tool-free latch - no opening sealed electronics
- check Mount by screw, magnet, strap or DIN clip
- check The module's certificate follows it automatically
Materials & protection
Engineered down to the membrane.
The case has to breathe to read true temperature and humidity - without letting water, dust or UV reach the electronics. Three details make that possible.
Replaceable metal mesh filter
A fine stainless mesh keeps dust, insects and debris out of the sensing chamber while air still moves freely. When a harsh site finally clogs it, you pop in a fresh one - no new enclosure required.
PA11 stable plastic
Built from PA11, a bio-based polyamide prized for dimensional stability and impact strength across wide temperature swings - so the case stays true and tough from a blast freezer to a sun-baked field.
Hydrophobic shield treatment
The vented shield is treated to repel water: droplets bead and roll off instead of pooling over the membrane, so condensation and washdown spray never skew a reading or wick inside.
CW-CASE
Specifications
- Ingress rating
- IP66
- Material
- PA11 (bio-based)
- Air filter
- Replaceable steel mesh
- Shield
- Hydrophobic-treated
- Temp range
- −40 °C to +85 °C
- Mounting
- Screw · magnet · strap
- Module socket
- Universal CropWatch
- Latch
- Tool-free
- Antenna
- Internal / external SMA
- Color
- Signal white
